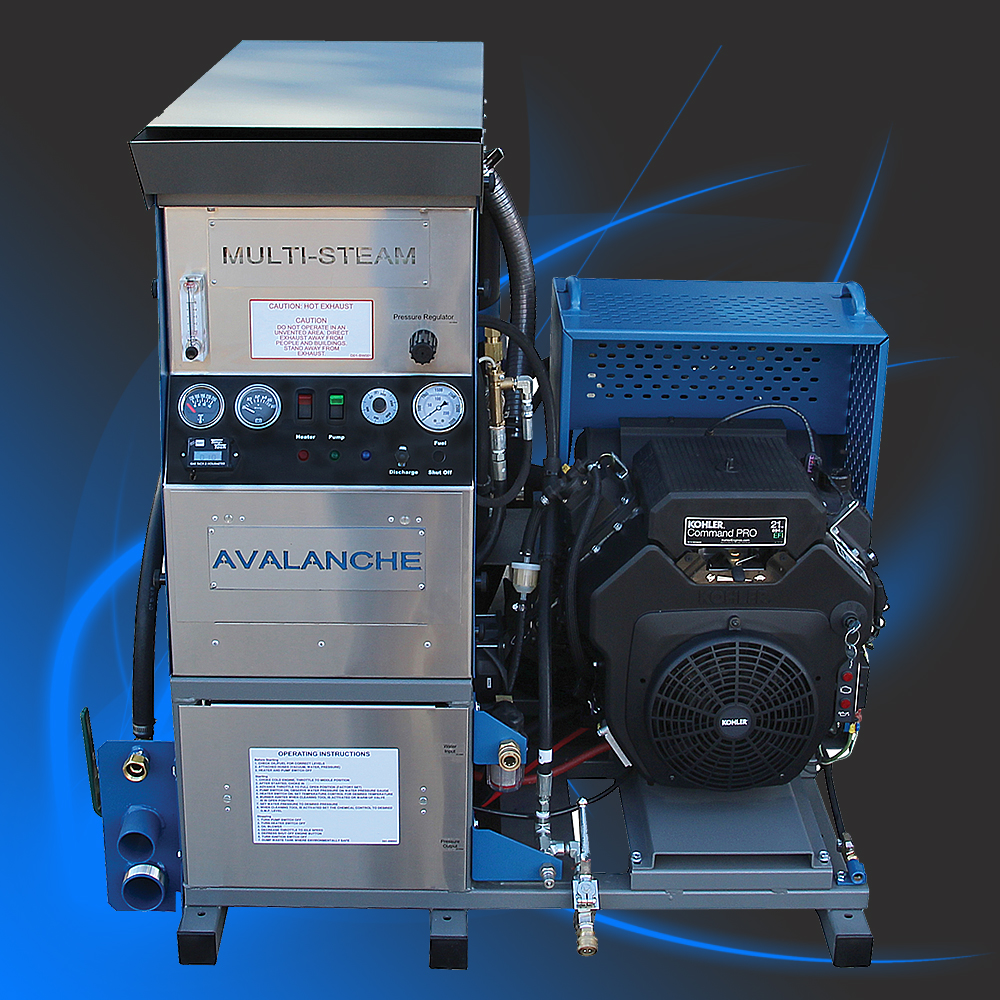

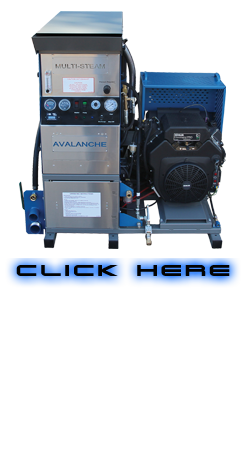

AVALANCHE
ENGINE: Kohler 21 HP EFI Command Pro energy efficient industrial air cooled engine
VACUUM: Roots 45 URAI blower produces up to 395 CFM with 3" plumbing from stainless steel wastetank to blower.
HEATER: 220 XL On-demand fuel oil heating system. The 220,000 B.T.U. heating system can attain and maintain solution temps up to 280 degrees Fahrenheit.
DIMENSIONS: 42.5"W x 45.5"D x 43.5"H Weight 728 lbs
PUMP: Industrial heavy duty Cat 3 CP solution pressure system. Adjustable and useable pressures up to 2000 P.S.I. (86 bar) of solution pressure up to 3.7 G.P.M. (13.21 L.P.M.)

PERFORMANCE: 3.7gpm (Max) 2000 psi | 2.75gpm 1200 psi | 1.50gpm 500 psi @280 degrees F | Lab tested with 5.5 tip @ max settings | Sound Level 98-106 db

DONLOADS:
Avalanche Brochure
EFI 21hp Engine Owners Manual
EFI 21hp Engine Service Manual
Carborated 20hp Engine Owners Manual
Carborated 20hp Engine Service Manual
Wastewater Pump
Fuel Burner
Cat Pump

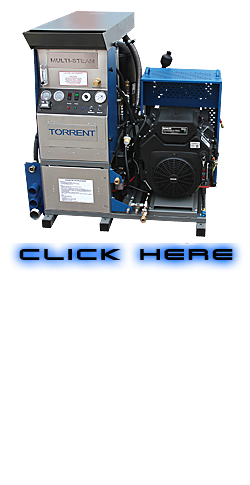

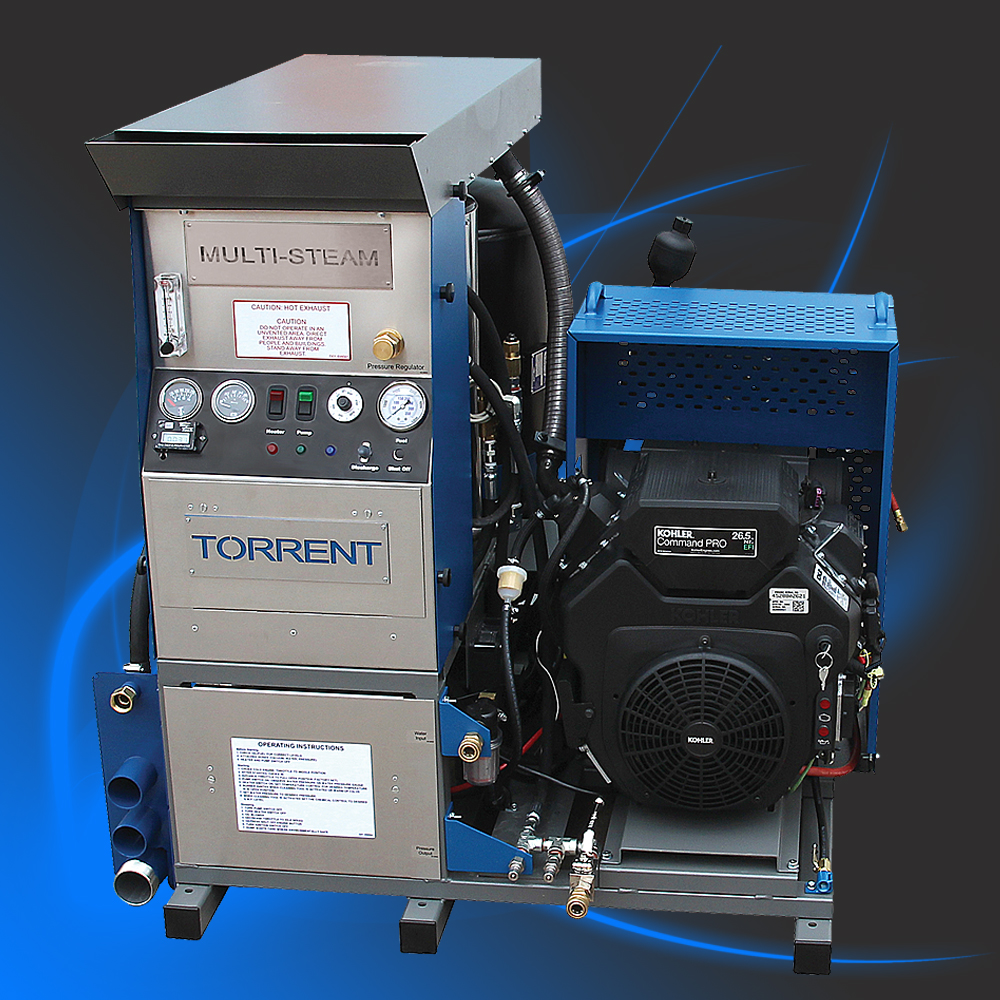

TORRENT
ENGINE: Kohler 26.5 HP EFI Command Pro energy efficient industrial air cooled engine
VACUUM: Roots 47 URAI blower produces up to 490 CFM 3" plumbing from stainless steel wastetank to blower.
HEATER: 220 XL On-demand fuel oil heating system. The 220,000 B.T.U. heating system can attain and maintain solution temps up to 280 degrees F.
DIMENSIONS: 42.5"W x 45.5"D x 43.5"H Weight 768 lbs
PUMP: Industrial heavy duty Cat 5 CP solution pressure system. Adjustable and useable pressures up to 3000 P.S.I. of solution pressure up to 4.2 G.P.M.

FEATURES: Unprecedented serviceability access | Easy access oil filter and oil drain | Inlet water system prevents backflow | Vacuum blower oiler

PERFORMANCE: 4.2gpm (Max) 3000 psi | 3.2gpm 1200 psi | 1.70gpm 500 psi @280 degrees F | Lab tested with #5 tip @ max settings | Sound Level 98-106 db

DOWNLOADS:
Torrent Brochure
EFI 26.5hp Engine Owners Manual
EFI 26.5hp Engine Service Manual
Carborated 30hp Engine Owners Manual
Carborated 30hp Engine Service Manual
Wastewater Pump
Fuel Burner
Cat Pump

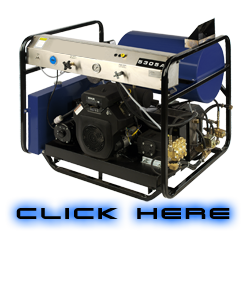

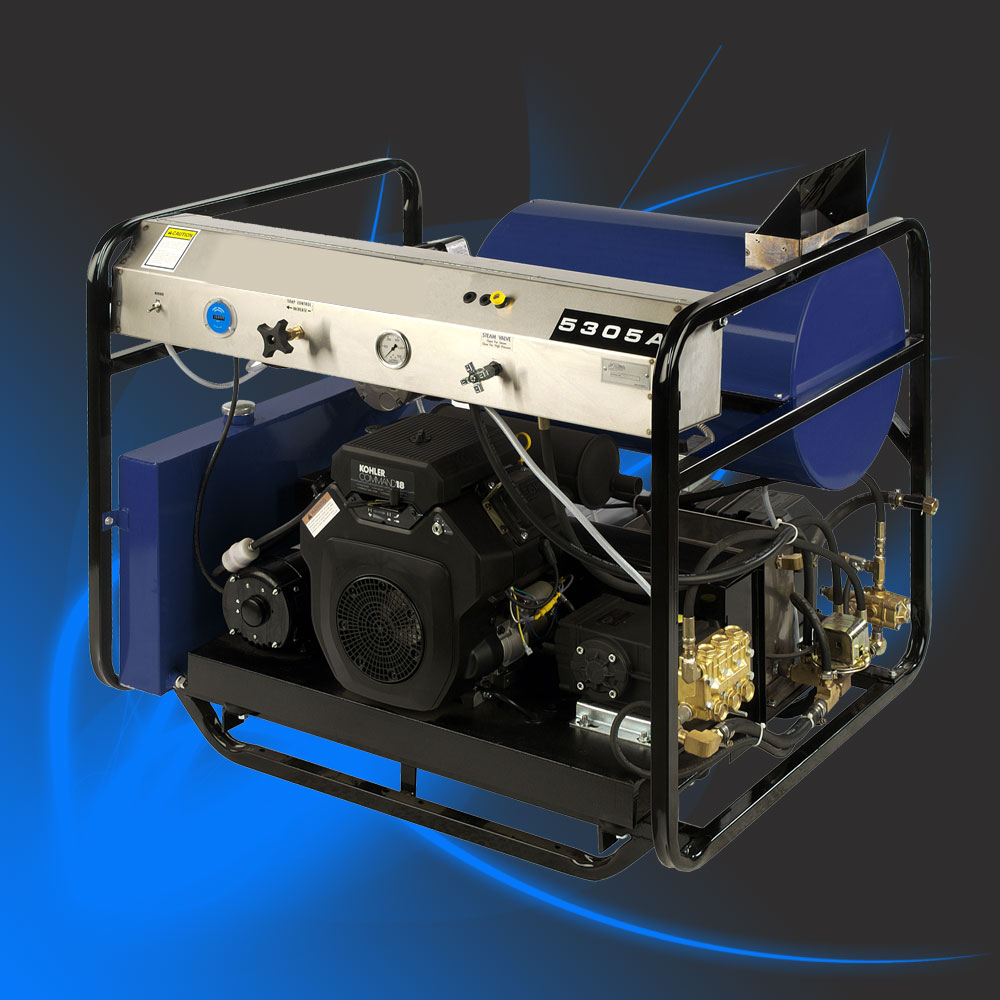

EXTREME SKID MOUNT
ENGINE: 16 to 35HP gas or diesel
FLOW: up to 10GPM
PRESSURE: up to 5000 P.S.I.
DIMENSIONS: L-481⁄4" H-45" W-40" Weight 960 lbs

FEATURES: 115V burner | belt driven tri-plex pump | electric start | hot high pressure up to 210 degrees F | Ideal for mobile washers, farmers, hog and poultry producers, construction and oil fields
DOWNLOAD BROCHURE






INDUSTRIAL SKID MOUNT
ENGINE: 14 to 35 HP Gas Engine Drive
FLOW: up to 8GPM
PRESSURE: up to 5000 P.S.I.
DIMENSIONS: L-48” H-38 1⁄2” W-34”

FEATURES: belt driven tri-plex pump | oil-fired | hot high-pressure up to 210 degrees F


DOWNLOAD BROCHURE

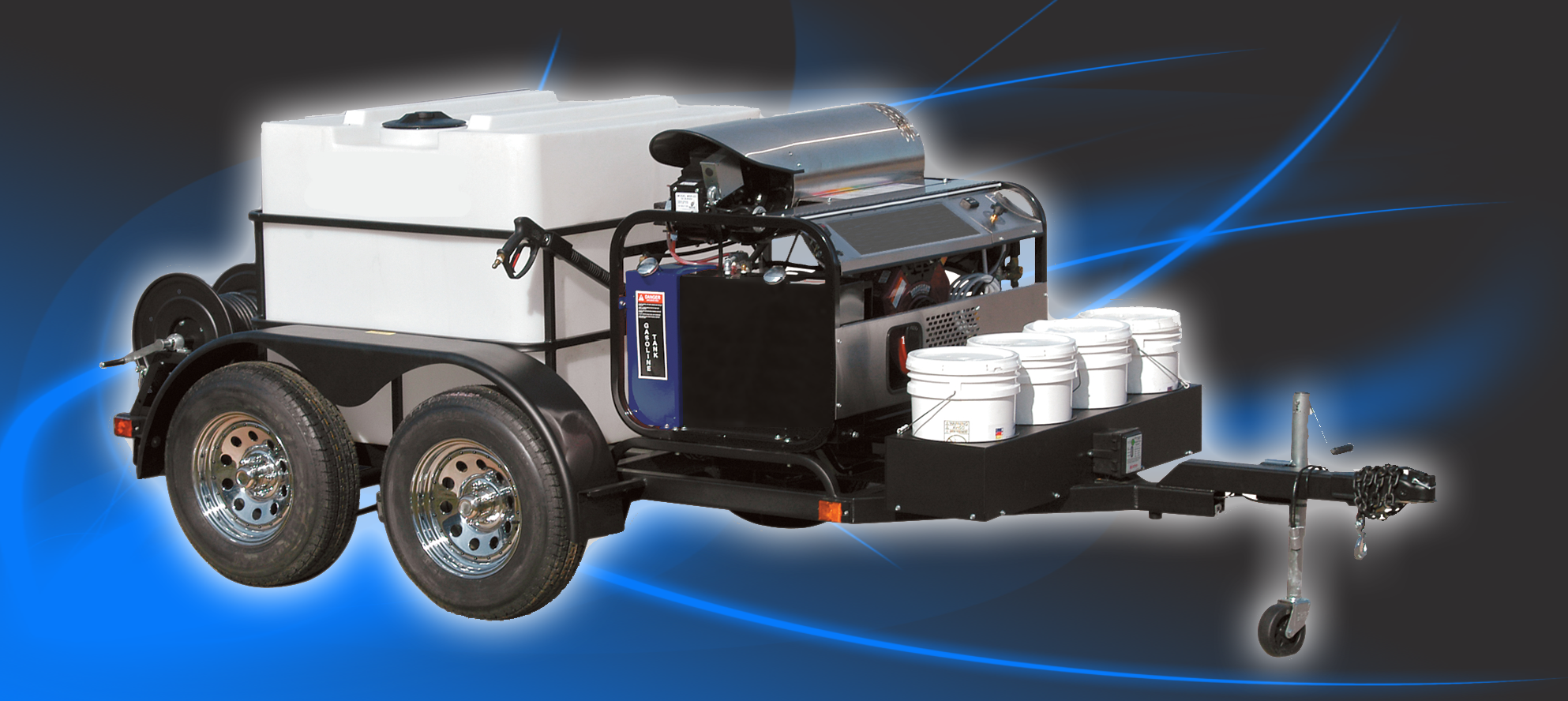

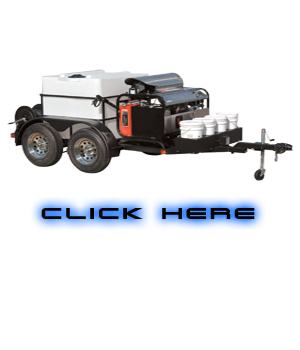

TRAILOR MOUNT UNITS
OPTIONS: • Model 20153-00906 – 300 lbs sand hopper
• F03-00519 – Rotating hazard roof light
• 20151-00821 – Spare chrome wheel, tire, & carrier
• 20151-00909 – Detergent container rack
• 20153-00811 – Low water shut-off
• Surge brakes per axle (check local laws for use)
• Lunette eye coupler which replaces standard ball hitch
• Bull dog hitch which replaces standard ball hitch
• Tool box (48”L x 12”H x 12”W)

FEATURES: Tandem drop axel | 330 gallon water capacity | Electric brakes | High pressure hose reel with 100 ft. of hose | Chrome wheels

DOWNLOAD BROCHURE

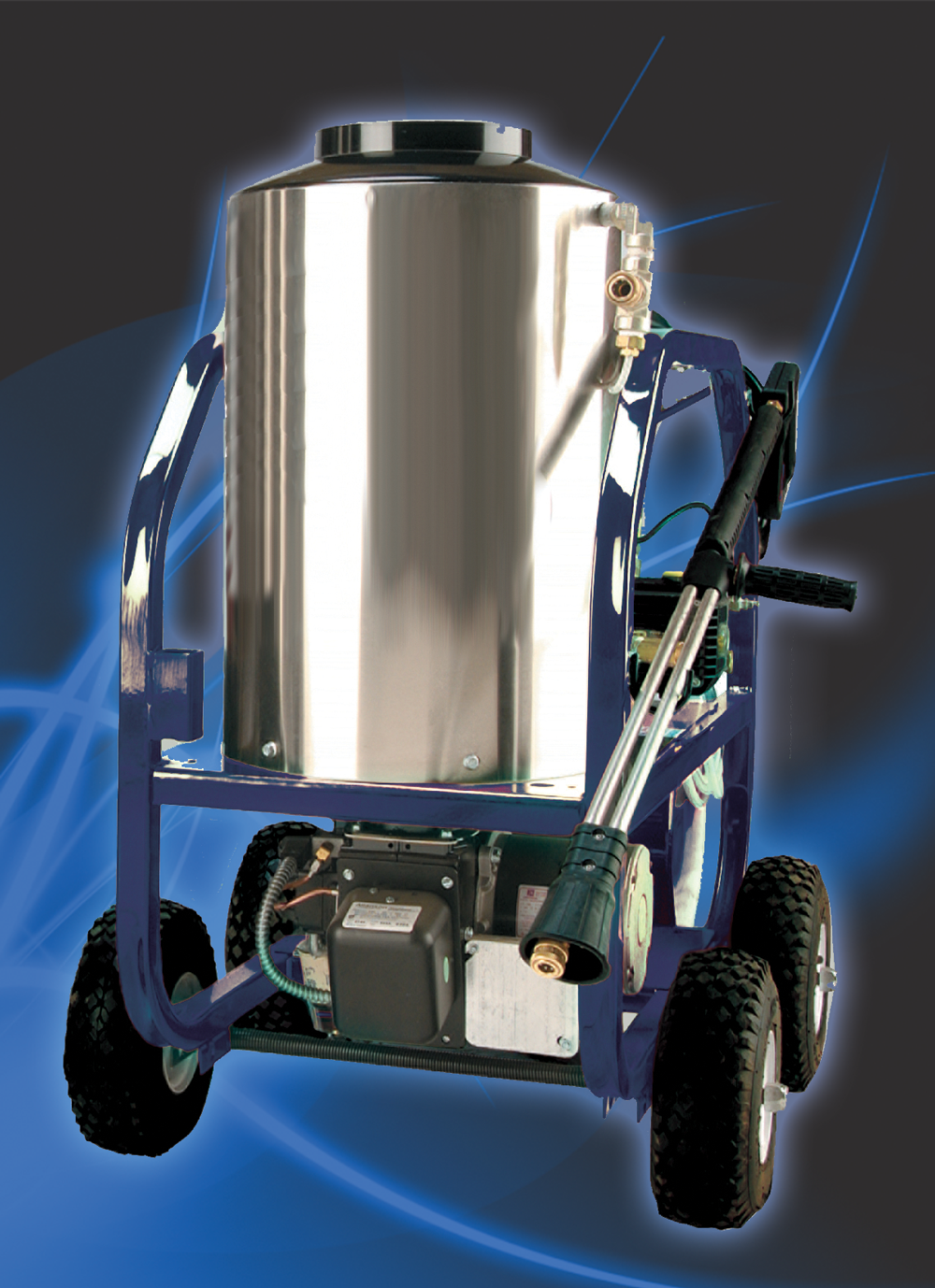

SUPER PRO SERIES
ENGINE: Honda 9 HP gas powered engine
FUEL TANK: Corrosion proof 8 gal fuel tank
BURNER: Oil Fired 315,000 B.T.U. @ 3,000 P.S.I.
DIMENSIONS: 48"L x 32"W x 39"H Weight 530 lbs

FEATURES: Heavy duty roll cage with lift bar | Stainless steel coil wrap & control panel | Heavy duty triplex plunger oil bath pump | Corrosion proof 8 gal fuel tank | Fuel water separator | Pulsation dampener | Pneumatic tube wheels | Adjustable axles for weight balance | Detergent injector | 50' pressure hose with quick disconnects | Four color coded quick change spray nozzles | Dual lance wand for variable pressure | Hose reel mount bracket
DOWNLOAD BROCHURE





SUPER PRO SERIES
ENGINE: Honda 13 HP gas powered engine
FUEL TANK: Corrosion proof 8 gal fuel tank
BURNER: Oil Fired 434,000 B.T.U. @ 4,000 P.S.I.
DIMENSIONS: 48"L x 32"W x 39"H Weight 560 lbs

FEATURES: Heavy duty roll cage with lift bar | Stainless steel coil wrap & control panel | Heavy duty triplex plunger oil bath pump | Corrosion proof 8 gal fuel tank | Fuel water separator | Pulsation dampener | Pneumatic tube wheels | Adjustable axles for weight balance | Detergent injector | 50' pressure hose with quick disconnects | Four color coded quick change spray nozzles | Dual lance wand for variable pressure | Hose reel mount bracket
DOWNLOAD BROCHURE

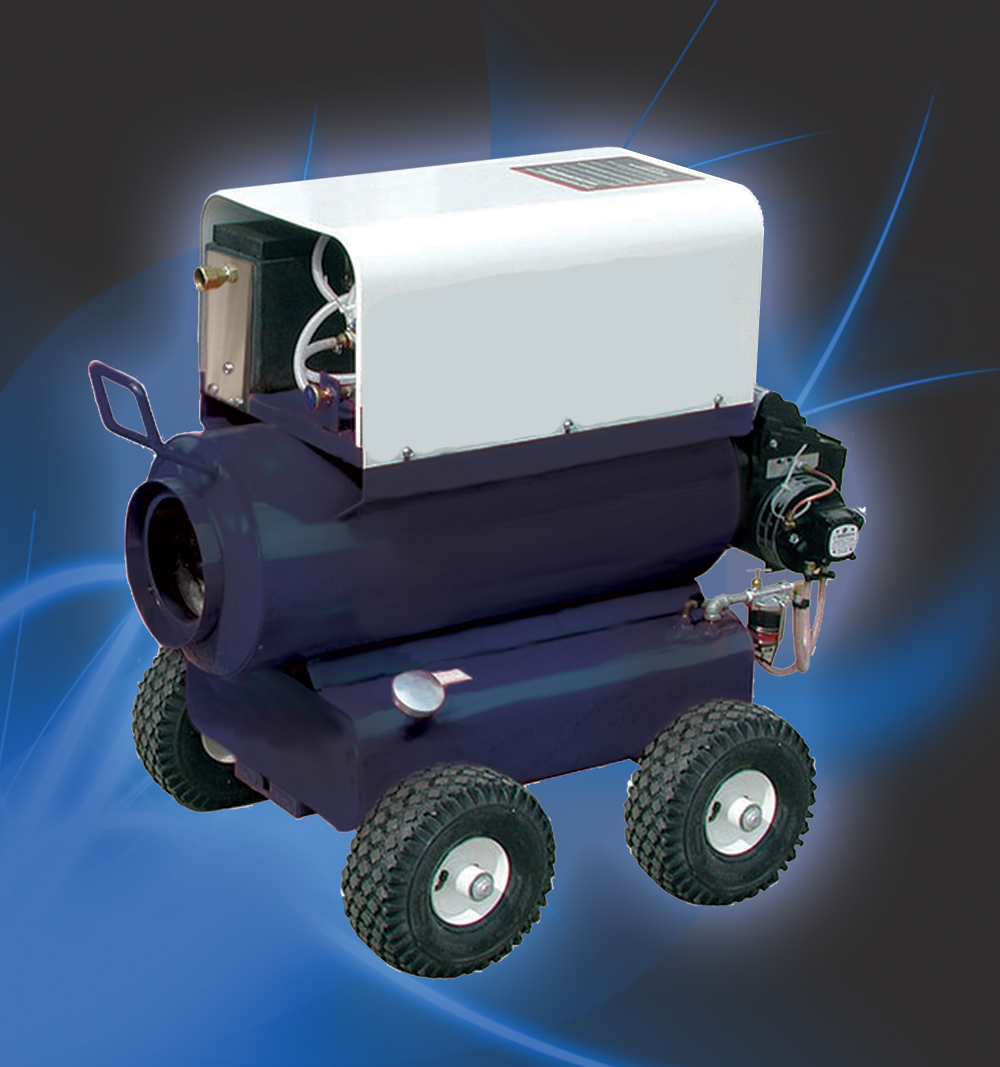

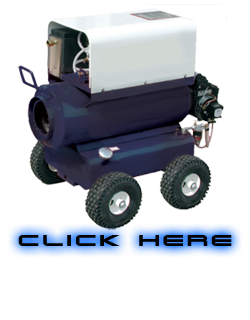

PRO SERIES
ENGINE: 110V/1HP or 220V/1HP Electric Engine Produces 1600 to 2000 P.S.I.
BURNER: Oil Fired Industrial Burner
DIMENSIONS: 42"L x 25"W x 37"H Weight 365 lbs

FEATURES: Ceramic piston, triplex oil bath pump belt driven | Trigger gun and 50 foot long high pressure hose | Fully pneumatic ball bearing wheels | High pressure chemical application forces chemical into stubbor areas | Up to 210 degrees F water temperature
DOWNLOAD BROCHURE

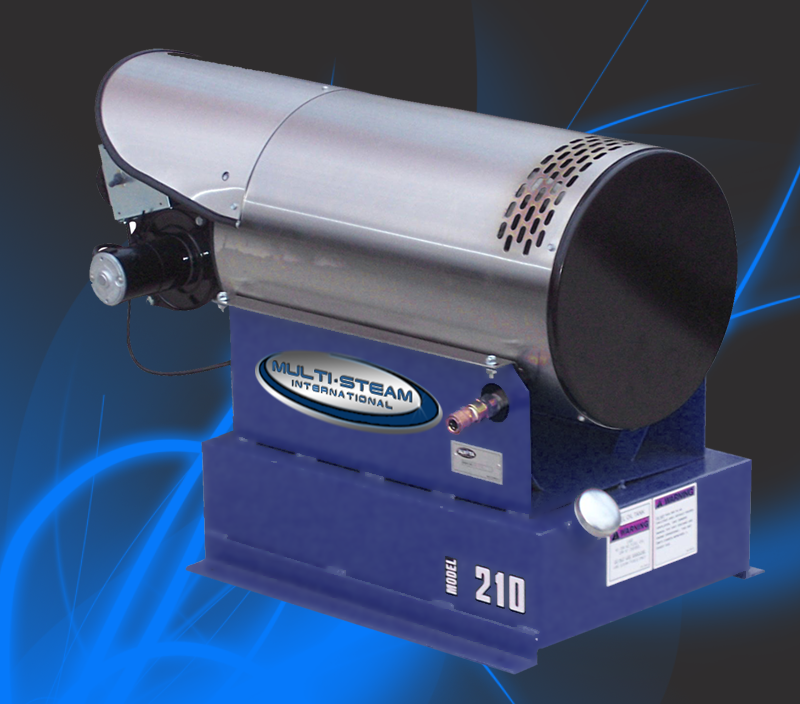

210 WH WATER HEATER
BTU Rating: 230,000
ELECTRICITY: 12v or 120v
DIMENSIONS: L-36 1/4" W-20" H-24" Weight-305 lbs

FEATURES: Oil Fired | Instantaneous heat | 120 volt electricity | Large 10 gallon fuel tank | Schedule 80, cold water wrap 95 ft coil | Standard flow switch | 1.65 gallon per hour fuel consumption


DOWNLOAD BROCHURE

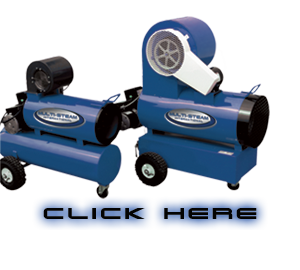

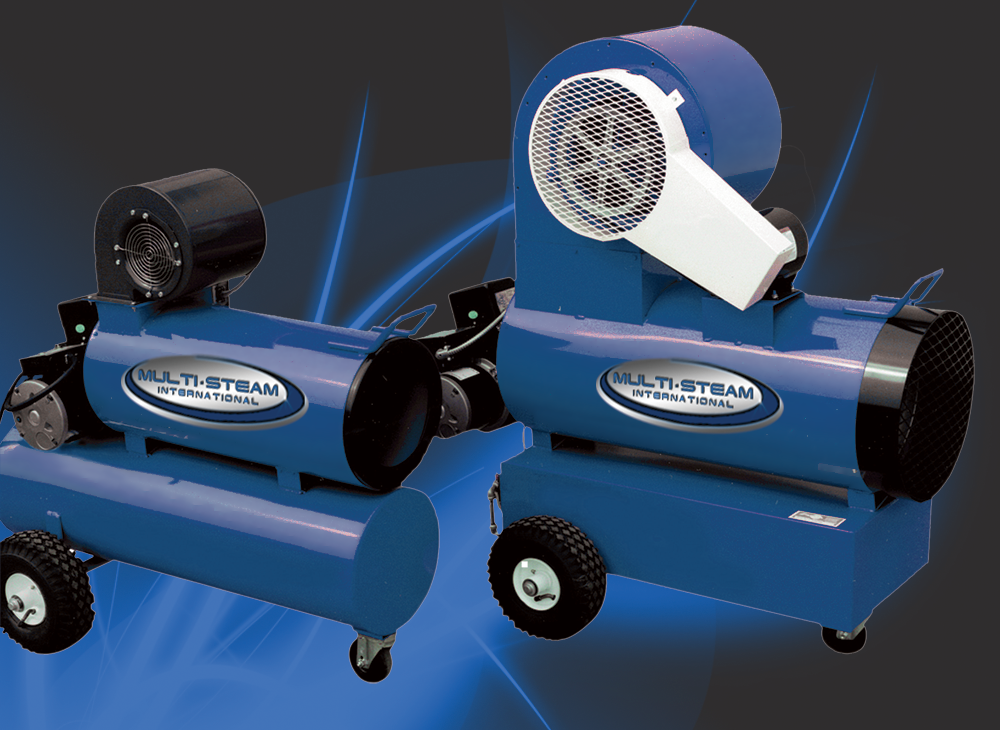

INDUSTRIAL SPACE HEATERS
BTU Rating: 160,000 / 210,000
ELECTRICITY: 115V 1 PH
DIMENSIONS: 40" x 37" x 20" Weight 195 lbs

FEATURES: Oil Fired | Instantaneous heat | 110 volt electricity | Large fuel tank | Stainless steel combustion chamber | High temperature limit switch | High capacity fans | Pneumatic ball bearing wheels and castors


DOWNLOAD BROCHURE
